From 0 to 1: Common workflow

Design Philosophy

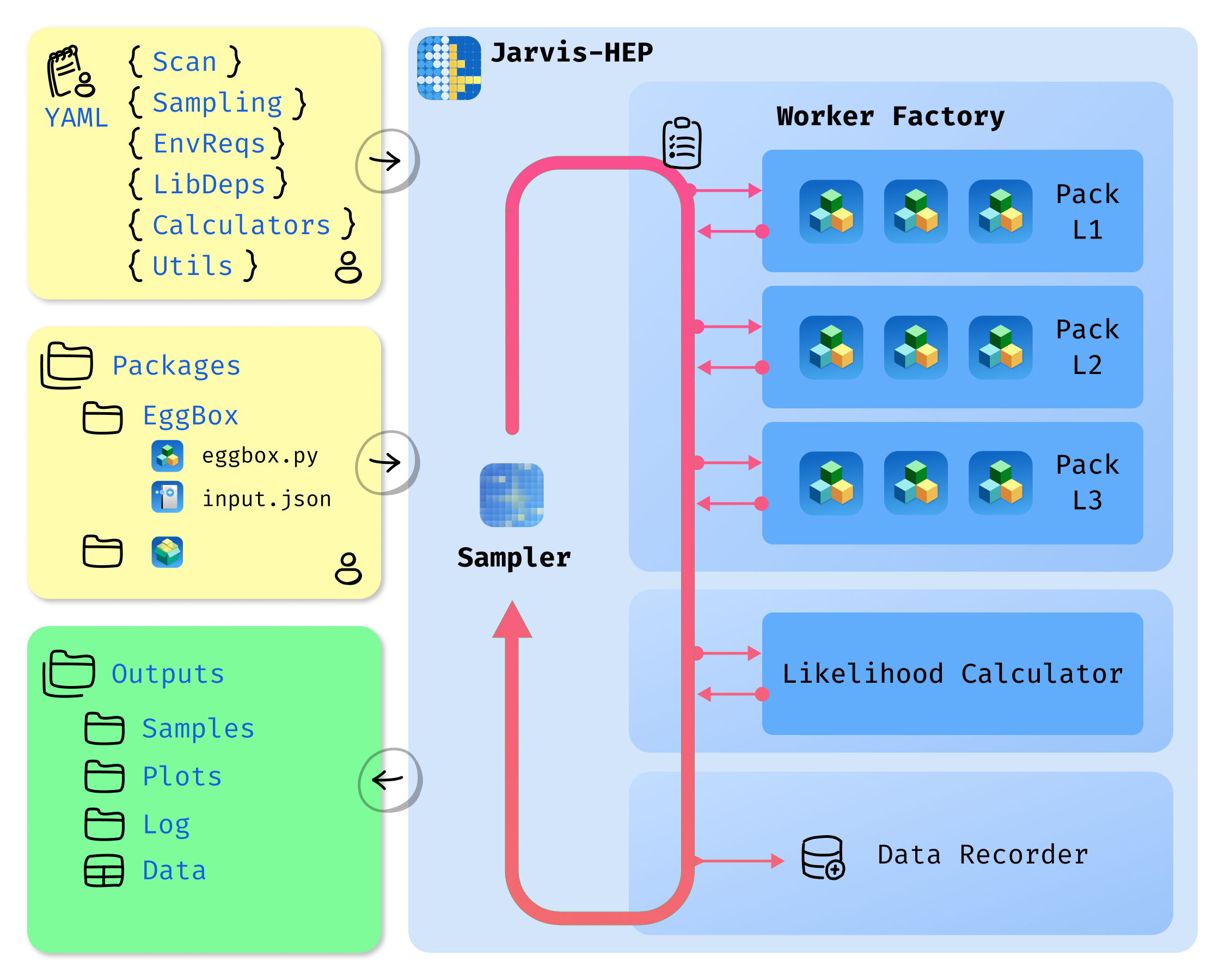

This diagram summarizes the end-to-end Jarvis workflow: you prepare the packages, write a scan card (Task YAML), and choose a sampler. Jarvis orchestrates the execution—including environment requirements and calculator backends—runs the scan, and produces structured outputs that can be post-processed and visualized (e.g., with Jarvis-PLOT).

Jarvis acts as a sampling manager.

  1. It builds a Worker factory based on your task YAML file and the packages you provided.
  2. Jarvis monitors the sampler and factory, assigns each sample from the sampler as a task, and submits tasks to the factory asynchronously—waiting for each result before submitting the next one.
  3. the Worker factory accepts each task and executes calculations according to the calculation flowchart.
  4. all results—including samples, logs, and data files—are collected in the output folder.

Users can then process data using their own tools or visualize it using JarvisPLOT (when it is available).

Step-by-step (from 0 to 1)

1) Create a project scaffold

Create a new project folder with the standard layout:

Jarvis --mkproject MyProject

You should see a folder :folders: MyProject contains (at least):

📁 MyProject
        ├── 📁 bin
        │      ├──  📋 quickstart_csv_operas.yaml
        │      └──  📋 quickstart_mcmc_operas.yaml
        ├── 📁 data
        │      └──  🗃️ points.csv
        ├── 📁 deps
        │      └──  📋 environment_default.yaml
        ├── 📋 jarvis.project.yaml
        └── 📖 README.md
  • 📁 bin : YAML task cards live here.
  • 📁 data : External data files that may be helpful to your project but are not directly related to Jarvis scan tasks.
  • 📁 deps : Packages and everything related to Jarvis scan tasks. Jarvis creates a default environment requirement list card here, :yaml: enviroment_default.yaml .

2) Edit the YAML task card

You can find example YAML task cards in the Eggbox project (Eggbox: a minimal black box example ). For a detailed reference, see Task YAML Structure.

We'll skip editing for now and use the Eggbox example in the next step. Download it via the Jarvis project engine, see Command Line Tools

Jarvis project fetch Eggbox

3) Run the scan (default mode)

Navigate to the Eggbox directory and run Jarvis on the task card:

cd Eggbox
Jarvis ./bin/Example_Bridson.yaml

The interface during execution is shown below. Here, following the actual execution sequence, I'll explain what Jarvis does internally. Generally, users don't need to pay much attention to Jarvis's output—the terminal display shows only the status of the sampler and factory. I'll break them into pieces and explain each briefly below:

  • A Jarvis-HEP icon and version information appear. This means the Jarvis logging system has launched.
 Jarvis-HEP
    -> 03-17 15:46:24.644 - [WARNING] >>>

 ███ ███         ██╗ █████╗ ██████╗ ██╗   ██╗██╗███████╗
█████████        ██║██╔══██╗██╔══██╗██║   ██║██║██╔════╝
█══███══█        ██║███████║██████╔╝██║   ██║██║███████╗
╚╗█████╔╝   ██   ██║██╔══██║██╔══██╗╚██╗ ██╔╝██║╚════██║
 ╚█═══█╝    ╚█████╔╝██║  ██║██║  ██║ ╚████╔╝ ██║███████║
  █████      ╚════╝ ╚═╝  ╚═╝╚═╝  ╚═╝  ╚═══╝  ╚═╝╚══════╝
________________________________________________________
=== Jarvis-HEP ===
     Just a Robust and Versatile Interface Suite for HEP
          Author:   Pengxuan Zhu, Erdong Guo.
          Version:  1.6.9
 Jarvis-HEP
    -> 03-17 15:46:24.645 - [WARNING] >>>
Jarvis-HEP logging system initialized successful!
  • Check YAML via schema parser system. The following output means you have written the YAML task card with correct Jarvis-HEP grammar.
 Jarvis-HEP.ConfigParser
    -> 03-17 15:46:26.128 - [WARNING] >>>
Validation successful. The input YAML file meets the schema requirement.
  • Successfully initialized the sampler (using the Bridson sampling method).

 Jarvis-HEP.Bridson
    -> 03-17 15:46:26.136 - [WARNING] >>>
Sampling method initializaing ...
 Jarvis-HEP.Bridson
    -> 03-17 15:46:26.142 - [WARNING] >>>
Sample archive worker started
Field | Value
----- | ---------------------------
pid   | 83483
 Jarvis-HEP.Bridson
    -> 03-17 15:46:26.143 - [WARNING] >>>
Initializing the Bridson Sampling
  • Calculation flow was successfully parsed, and Worker factory is successfully initialized. Eggbox instances are reloaded here. This happens when you run a repeated scan task, avoiding recompilation of external packages to save time.
 Jarvis-HEP.Factory
    -> 03-17 15:46:29.317 - [WARNING] >>>
Building the factory for workers ...
 Jarvis-HEP.Factory.Manager
    -> 03-17 15:46:29.317 - [WARNING] >>>
Manager adding ModulePool EggBox.
 Jarvis-HEP.Workflow.EggBox
    -> 03-17 15:46:29.317 - [WARNING] >>>
Trying to loac the installed instance information for mudule -> EggBox
 Jarvis-HEP.Workflow.EggBox
    -> 03-17 15:46:29.326 - [WARNING] >>>
Instance reloaded!
  • The factory builds the worker pipeline for the task, and the calculation flowchart is plotted automatically. Factory is ready.
 Jarvis-HEP
    -> 03-17 15:46:28.914 - [WARNING] >>>
Draw workflow chart into /Users/p.zhu/Jarvis-Workshop/Jarvis-Examples/Eggbox/images/EggBox_Bridson/flowchart.png
 Jarvis-HEP.Bridson
    -> 03-17 15:46:29.597 - [WARNING] >>>
WorkerFactory is ready for Bridson sampler

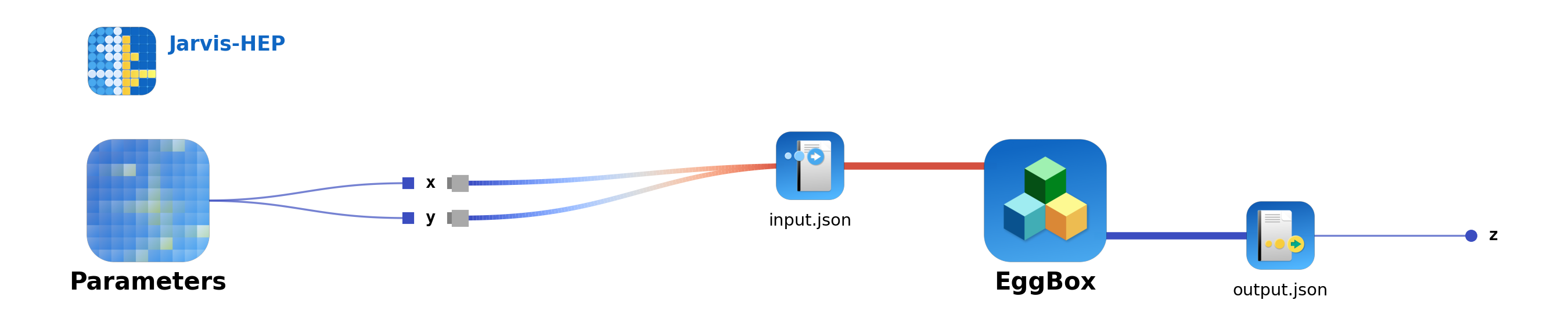

Calculation flowchart for Eggbox. For each sample, the sampler generates two values, x and y. The factory then calls the eggbox module to calculate the z value.

  • Sampling started. Running state information is shown periodically.
 Jarvis-HEP.Bridson
    -> 03-17 15:46:31.358 - [WARNING] >>>
10‰ of 101/10028 samples submited in 00:00:01.753

...

 Jarvis-HEP.Factory
    -> 03-17 15:48:01.154 - [WARNING] >>>
Submitted 5000 tasks, time for last 1000 tasks: 00:00:18.566, total time: 00:01:31.838

...
  • Sampling finished:

A. Sampler stops sampling.

 Jarvis-HEP.Bridson
    -> 03-17 15:49:34.406 - [WARNING] >>>
1000‰ of 10028/10028 samples submited in 00:03:04.801

B. Data writer stopped recording, displayed the summary, and converted the HDF5 files into human-readable CSV format.

Ϡ Jarvis-HEP.hdf5-Writter
    -> 03-17 15:49:34.573 - [WARNING] >>>
Global HDF5 writer stopped
Ϡ Jarvis-HEP.hdf5-Writter
    -> 03-17 15:49:34.574 - [WARNING] >>>
Global writer summary
Field           | Value
--------------- | ----------------------------------------------------
enqueued        | 10028
flushed         | 10028
flush_count     | 20
max_queue_depth | 5

Ϡ Jarvis-HEP.hdf5-Writter
    -> 03-17 15:49:35.243 - [WARNING] >>>
Converted HDF5 data to CSV at -> /Users/p.zhu/Jarvis-Workshop/Jarvis-Examples/Eggbox/outputs/EggBox_Bridson/DATABASE/samples.0.csv.

C. Factory shuts down with a summary information table. The factory handled 54 samples (tasks) per second. If you use the Operas version of the Eggbox example, you'll see a significant performance boost because Operas registers Eggbox in memory, eliminating file I/O overhead.

 Jarvis-HEP.Factory
    -> 03-17 15:49:35.244 - [WARNING] >>>
Factory shutdown summary
Field      | Value
---------- | ---------------------------------------------------
submitted  | 10028
ok         | 10028
failed     | 0
unfinished | 0
tail_tasks | 28
total_time | 00:03:05.929
avg_rate   | 53.93 tasks/s

After the sampling is finished, the directory tree is like

Eggbox
├── bin
│   ├── Example_Bridson_Operas.yaml
│   └── Example_Bridson.yaml
├── calculators
│   └── runtime
│       └── program
│           └── EggBox
│               ├── 001
│               │   ├── eggbox.py
│               │   ├── input.json
│               │   ├── Installation_EggBox-001.log
│               │   └── output.json
│            ....
│               └── EggBox_instance_info.json
├── deps
├── images
│   └── EggBox_Bridson
│       └── flowchart.png
├── logs
│   └── EggBox_Bridson
│       ├── Bridson.log
│       ├── EggBox_Bridson.log
│       └── Factory.log
├── outputs
│   └── EggBox_Bridson
│       ├── DATABASE
│       │   ├── archive_manifest.jsonl
│       │   ├── running.json
│       │   ├── samples.0.csv
│       │   ├── samples.0.hdf5
│       │   └── samples.schema.json
│       ├── Example_Bridson.pkl
│       ├── run_summary.csv
│       ├── run_summary.json
│       ├── run_summary.txt
│       └── SAMPLE
│           ├── 000001.tar.gz
│           ...
│           └── 000050.tar.gz
└── README.md

... directories, ... files
  • 📁 calculator : The folder containing HEP Package instances, each of which will be called by the Factory. In the Eggbox examples, this folder is created automatically by the factory. Users can use a different name—this is just a conventional choice.
  • 📁 logs: Detailed logging files for the sampler and factory.
  • 📁 output : The output folder holds scan task results and contains two subfolders: DATABASE and SAMPLE. The former records the dataset generated by the scan task; the latter contains detailed information for all samples. The SAMPLE folder is compressed, with complete information recorded in the DATABASE/archive_manifest.jsonl file.

4) Convert data files to CSV (optional)

Before the scan finishes, you can convert the HDF5 format data into CSV output in a new terminal. This operation will not affect the Jarvis scanning process. This allows you to check the data while Jarvis is running a time-consuming task and use JarvisPLOT to visualize the CSV files during the scan.

Jarvis ./bin/Example_Bridson.yaml --convert

5) Generate plotting config and make plots (optional)

Generate a Jarvis-PLOT YAML configuration from the Jarvis-HEP task card:

Jarvis ./bin/Example_Bridson.yaml --plot

 Jarvis-HEP
    -> 03-17 16:47:16.359 - [WARNING] >>>

 ███ ███         ██╗ █████╗ ██████╗ ██╗   ██╗██╗███████╗
█████████        ██║██╔══██╗██╔══██╗██║   ██║██║██╔════╝
█══███══█        ██║███████║██████╔╝██║   ██║██║███████╗
╚╗█████╔╝   ██   ██║██╔══██║██╔══██╗╚██╗ ██╔╝██║╚════██║
 ╚█═══█╝    ╚█████╔╝██║  ██║██║  ██║ ╚████╔╝ ██║███████║
  █████      ╚════╝ ╚═╝  ╚═╝╚═╝  ╚═╝  ╚═══╝  ╚═╝╚══════╝
________________________________________________________
=== Jarvis-HEP ===
     Just a Robust and Versatile Interface Suite for HEP
          Author:   Pengxuan Zhu, Erdong Guo.
          Version:  1.6.9
 Jarvis-HEP
    -> 03-17 16:47:16.359 - [WARNING] >>>
Jarvis-HEP logging system initialized successful!
 Jarvis-PLOT
    -> 03-17 16:47:16.365 - [WARNING] >>>
Generate JarvisPLOT YAML for Example_Bridson
 Jarvis-PLOT
    -> 03-17 16:47:16.367 - [WARNING] >>>
JarvisPLOT YAML generated:
/Users/p.zhu/Jarvis-Workshop/Jarvis-Examples/Eggbox/images/EggBox_Bridson/EggBox_Bridson.yaml
 Jarvis-PLOT
    -> 03-17 16:47:16.367 - [WARNING] >>>
Render with external Jarvis-PLOT CLI:
jplot /Users/p.zhu/Jarvis-Workshop/Jarvis-Examples/Eggbox/images/EggBox_Bridson/EggBox_Bridson.yaml %

Use Jarvis-PLOT to visualize the dataset. For more details, see the Jarvis-PLOT documentation.

jplot ./images/EggBox_Bridson/EggBox_Bridson.yaml

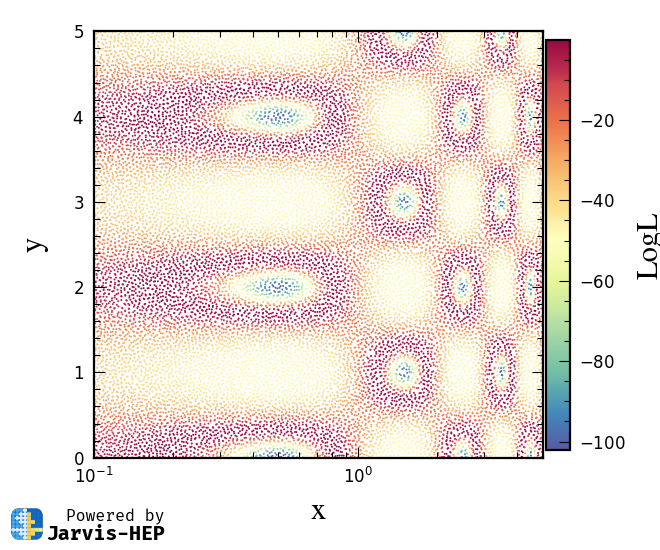

This will generate plots saved in the directory image/EggBox_Bridson/scatter_x__y.png


6) Monitoring a runing job (optional)

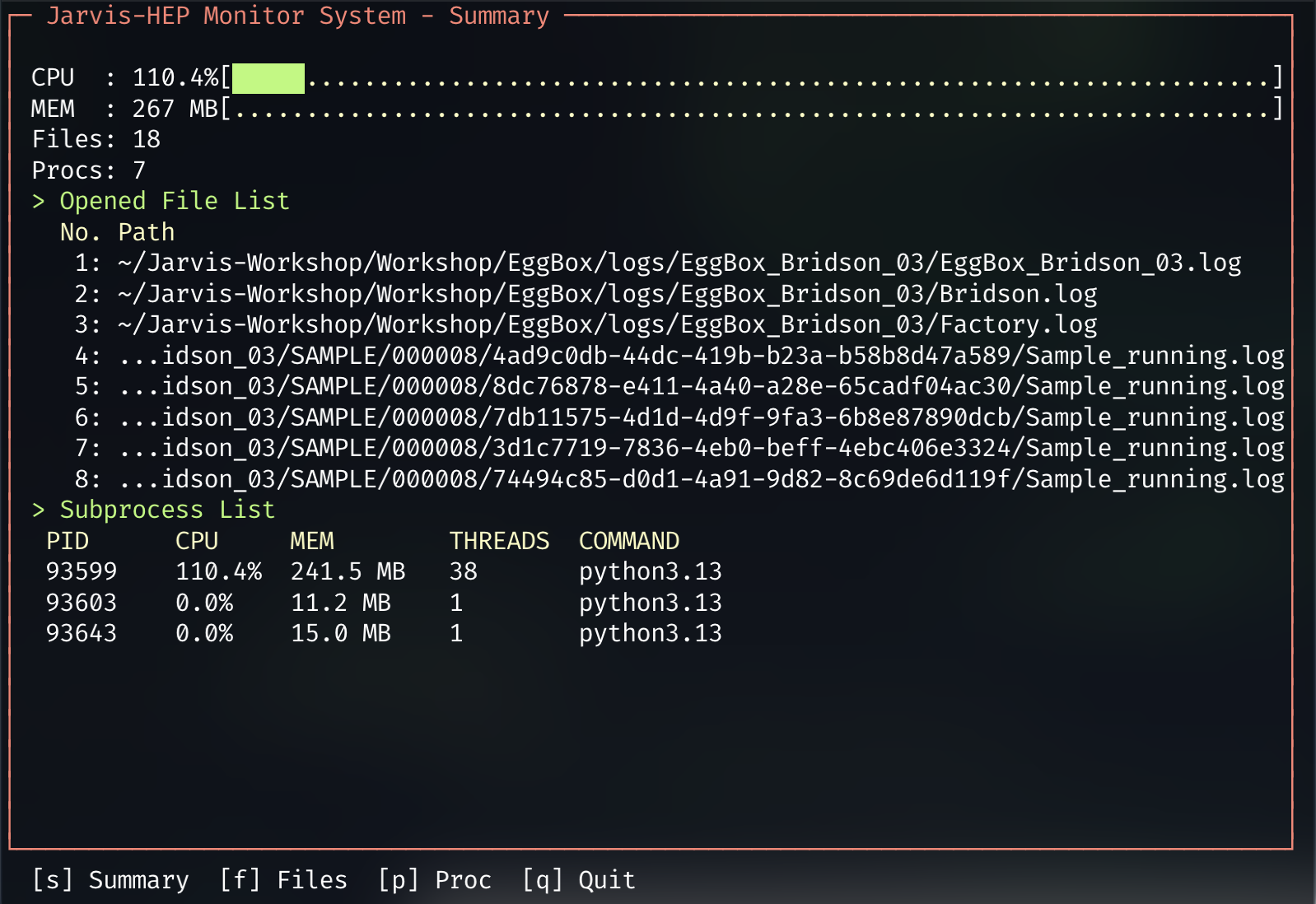

Jarvis-HEP allows you to monitor the currently running job. For the above example, open a new terminal and use

Jarvis ./bin/Example_Bridson.yaml --monitor


Congratulations, you made it from 0 to 1!

The above workflow demonstrates a complete cycle from project creation, task YAML preparation/reuse, scan initiation, to monitoring and result export/visualization. In practice, you only need to focus on the task card and output directory—Jarvis handles sampling scheduling, Worker execution, and result archiving, making large-scale parameter scans more stable, reproducible, and easier to post-process.
